Fully Automatic Sand Brick Making Machine QT4-15

MAISON PRODUITS Machine à fabriquer des blocs de béton

Fully Automatic Sand Brick Making Machine QT4-15

Fully Automatic Sand Brick Making Machine QT4-15

The QT4-15 is a compact, fully automatic brick making machine designed for efficient production of high-quality sand bricks, hollow blocks, and pavers. Featuring a PLC control system with user-friendly HMI touchscreen, it enables one-touch operation, recipe storage, and real-time diagnostics. The high-frequency vibration system ensures superior compaction, resulting in dense, dimensionally accurate products with excellent surface finish. With a cycle time of just 15–20 seconds and minimal manual intervention, the QT4-15 delivers reliable output for small to medium-scale operations. Ideal for entrepreneurs and contractors seeking affordability, durability, and ease of operation.

  • Modèle :

    Yixin Machinery QT4-15

  • Dimensions de la machine :

    9450*3000*2700(MM)

  • Taille de la palette :

    980*560(MM)

  • Temps de cycle :

    15-20(S)

  • Force de vibration :

    68(KN)

  • Pression de vapeur :

    21(MPA)

  • Pouvoir :

    25(KW)
DEMANDEZ UN DEVIS DÈS MAINTENANT

Fully Automatic Sand Brick Making Machine QT4-15

Reference video of Fully Automatic Sand Brick Making Machine QT4-15:

This reference video showcases the QT4-15, a compact, fully automatic brick making machine engineered for efficient production of sand bricks, hollow blocks, and pavers. Featuring a PLC control system with intuitive HMI touchscreen, it offers one-touch operation, recipe storage, and real-time monitoring. The high-frequency vibration system ensures superior compaction, delivering dense, dimensionally accurate products with excellent surface finish. With a rapid cycle time of 15–20 seconds and minimal labor requirements, the QT4-15 is ideal for small to medium-scale operations seeking affordability, reliability, and ease of use.





Production Data

Block Type Specification（mm） Qty/Pallet Qty/Hour Qty/8 Hours
Hollow Block  400*200*200 4 720 5760-7680
Solid Brick 240*115*53 26 6240 37400-49920
Holland Paver 200*100*60 16 2880 23040
Zigzag Paver 225*112.5*60 14 2520 20160





Product Details

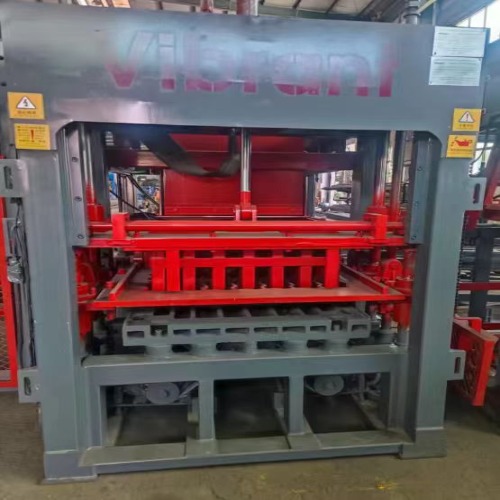

  • machine for making concrete block

    The QT4-15 features a heavy-duty cast vibration table engineered for superior compaction and uniform block density. Manufactured from high-grade ductile iron, the vibration table offers exceptional rigidity and crack resistance under continuous high-frequency operation. Integrated with a powerful vibration motor, it delivers adjustable excitation force to suit various block types and heights.

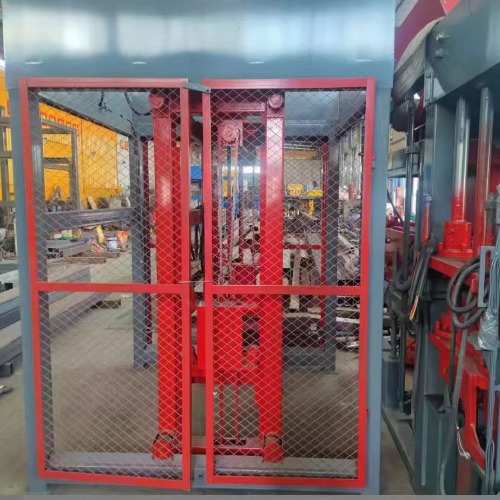

  • hollow block maker machine

    The QT4-15 is equipped with a fully automatic block stacker designed for efficient product handling and labor savings. This hydraulic-driven stacking system uses precision grippers to transfer finished blocks from the pallet to curing racks or direct truck loading. The programmable stacking pattern accommodates various block sizes and configurations, creating stable, space-saving stacks.

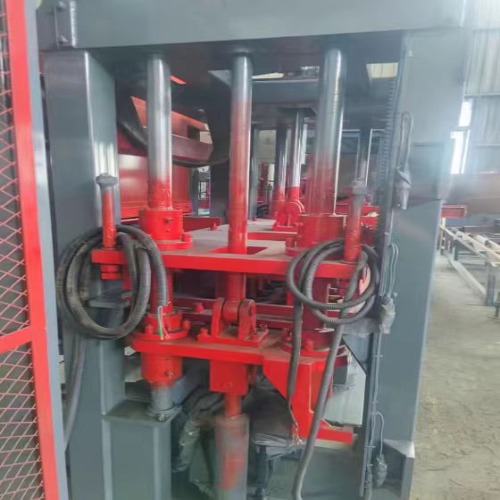

  • paver block maker machine

    The QT4-15 features a precision-engineered guiding system that ensures smooth, accurate movement of the mold carriage and pressing head. Constructed with hardened chrome-plated guide rods and heavy-duty linear bearings, the system eliminates lateral play and maintains perfect vertical alignment during vibration and pressing cycles. The four-column guide design distributes forces evenly, preventing mold tilt and block distortion.



Block Display

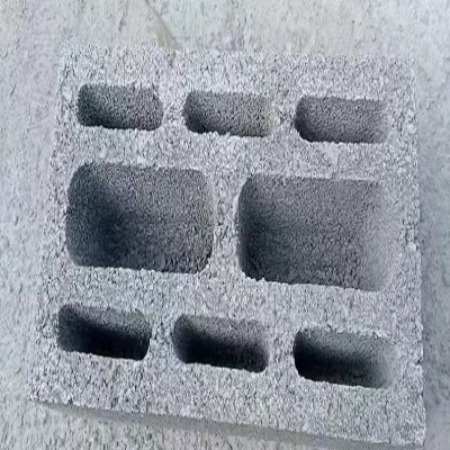

  • block making machine supplier

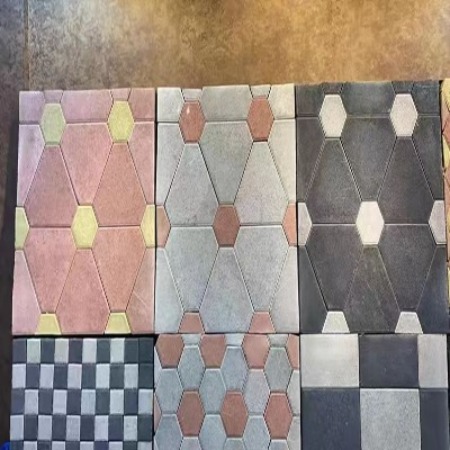

  • paver block making machine supplier
    .

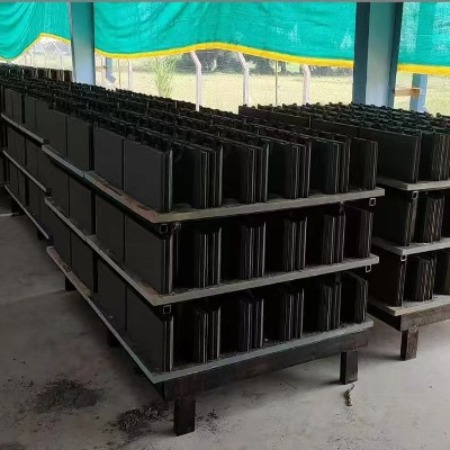

  • block moulding machine supplier

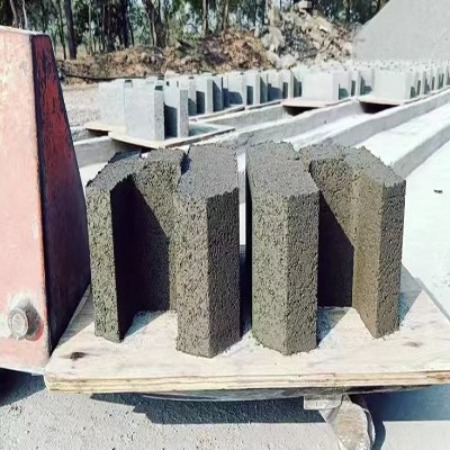

  • concrete hollow brick making machine supplier

The QT4-15 produces a superior range of sand bricks, hollow blocks, and pavers ideal for residential, commercial, and landscaping projects. Each block features clean edges, uniform density, and precise dimensions thanks to the machine's high-frequency vibration system and hydraulic pressure. Blocks exhibit high compressive strength, low water absorption, and excellent surface finish—meeting international quality standards. Available in various sizes and designs with quick mold changes, the display showcases the machine's versatility. The QT4-15 transforms standard sand and cement mixtures into durable, professional-grade masonry products that deliver consistent quality and reliability for builders and contractors worldwide.





Product Display

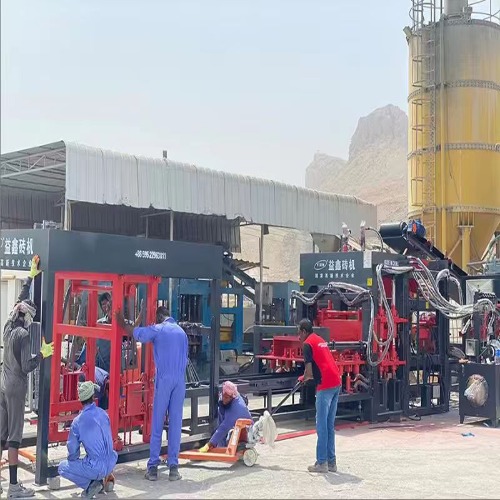

  • hot sale interlocking block making machine

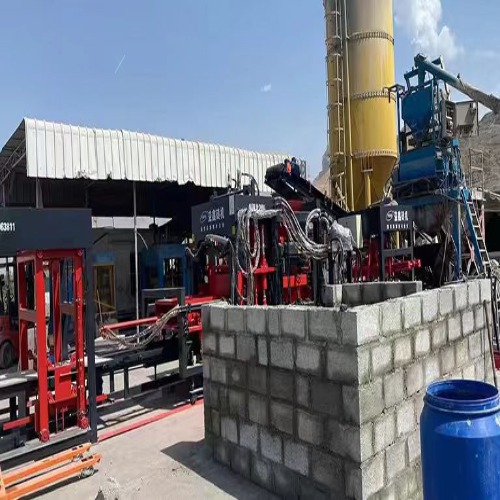

  • floor blocks moulding machinery

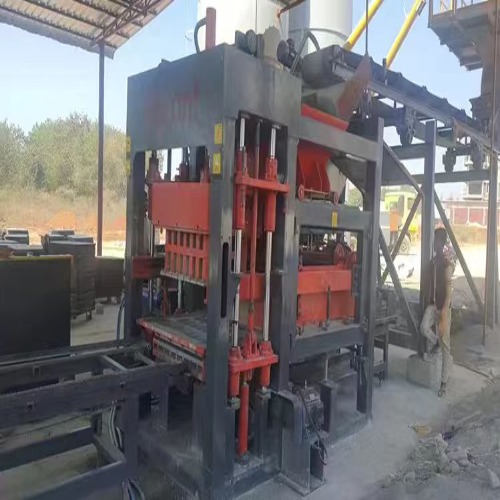

  • curb blocks forming machinery


The QT4-15 product display showcases the machine's outstanding output range and quality. Featured prominently are sand bricks, hollow blocks, and paving stones—each exhibiting clean edges, uniform density, and precise dimensions. The display highlights the high-frequency vibration system and hydraulic pressure that ensure superior compaction, resulting in products with excellent strength and surface finish.





FAQ

1.Can the QT4-15 be upgraded later?

Yes. Additional automation components, stackers, or conveyors can be added to expand production capacity over time.

2.Are wear parts readily available?

Yes, we stock molds, vibration motors, hydraulic seals, and other wear parts for immediate shipment.

3.How does QT4-15 compare to larger models?

The QT4-15 is more compact and affordable, ideal for startups and small-scale operations, while larger models offer higher output for industrial-scale production.

4.Can molds be customized?

Yes. Provide drawings, samples, or photos, and our engineers will design molds to your exact specifications.

5.What is the lead time?

20–25 working days after deposit confirmation. Sea freight takes 20–40 days depending on destination.
