High Efficiency Aggregate Cement Batching Plant Model PL 800
The Yixin Machinery High Efficiency Aggregate Cement Batching Plant Model PL 800 is a state-of-the-art concrete batching plant designed to efficiently mix and produce high-quality concrete. With its advanced technology and precision engineering, this model is capable of accurately measuring and mixing aggregates and cement to meet the specific requirements of any construction project.
Modèle :
Yixin Machinery PL 800Emballage :
FilmMode de transaction :
TT or 100%LCQuantité minimale de commande :
1setCouleur :
yellow or white and blueOrifice de décharge : :
Xiamen portScience des matériaux :
Q235 Steel ,handox steelHigh Efficiency Aggregate Cement Batching Plant Model PL 800
Reference video of High Efficiency Aggregate Cement Batching Plant Model PL 800:
This reference video showcases the PL 800, a high-efficiency batching plant designed for accurate weighing and feeding of aggregates and cement in concrete production. Featuring a heavy-duty skip hoist, multiple aggregate bins, and a precision load cell system, it ensures consistent batching accuracy with minimal material waste. The PLC automatic control allows easy adjustment of mix proportions and real-time production monitoring. Capable of batching up to 800 liters per cycle, the PL 800 integrates seamlessly with block making machines and concrete mixers. Ideal for manufacturers seeking reliability, accuracy, and high throughput.
Tech Data
| Type | PL800 | PL1200 | PL1600-3 | PL1600-4 |
| Volume of Weigh Hopper | 2m³*2 | 4m³*3 | 7m³*3 | 7m³*4 |
| Wolume of Unloading Hopper （m³） | 0.8 | 1.2 | 1.6 | 1.6 |
| Productivity（m³） | 48 | 72 | 96 | 96 |
| Maximum Magnitude | 1.5T | 2T | 3T | 4T |
Product Detail
Block Display
The PL 800 batching plant ensures consistent, high-quality concrete for producing superior blocks. Blocks displayed include hollow blocks, solid bricks, pavers, and curbstones—each exhibiting uniform density, sharp edges, and excellent surface finish. The precise batching accuracy of ±2% guarantees consistent mix proportions, resulting in blocks with high compressive strength and low water absorption. Color consistency across all blocks demonstrates the PL 800's reliable cement and aggregate measurement. This display proves how accurate batching directly improves block quality, reducing waste and rejected products. The PL 800 is the ideal partner for professional block manufacturers.
Product Display

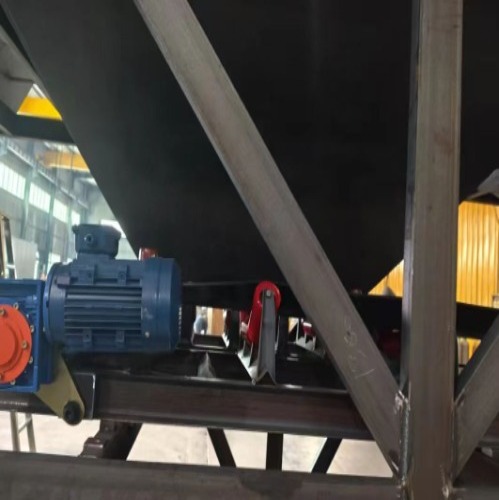

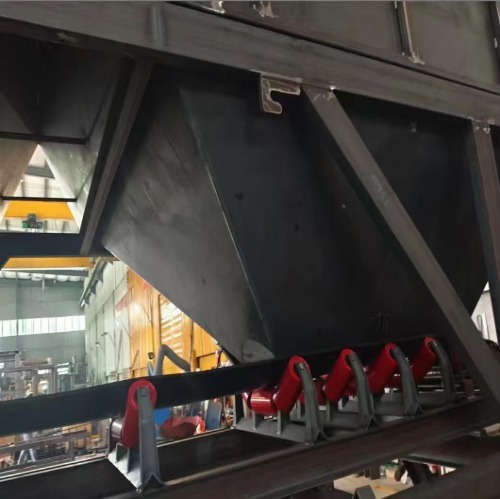

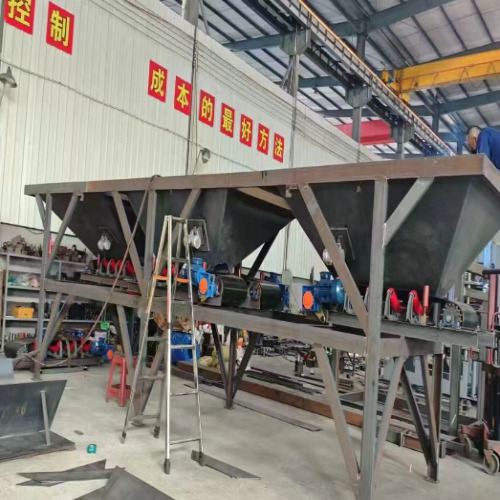

The PL 800 product display showcases the plant's complete components and capabilities. Featured prominently are the aggregate storage bins, precision weighing hopper, skip hoist, PLC control panel, and discharge system—each exhibiting robust construction and thoughtful engineering. The display highlights the load cells, vibration motor, and pneumatic gates that ensure accurate batching. Also shown are sample concrete blocks, pavers, and curbstones produced using PL 800-batched materials, demonstrating superior quality and consistency. This comprehensive display illustrates how the PL 800 integrates seamlessly into concrete production lines, delivering reliability, accuracy, and high efficiency for manufacturers.
| FAQ |
| 1. What is the PL Series mainly used for?
It is used for automatic batching of sand, stone, and other aggregates in concrete production. It works well with mixers like JS series. |
|
2.Is it easy to operate? Yes, it has a user-friendly control system. Operators can easily set formulas and monitor the process with clear displays. |
|
3.How easy is maintenance? The PL 800 features accessible components, wear-resistant liners, and easy-to-clean hoppers for simple routine maintenance. |
|
4.Does it have a vibration system? Yes. The vibration motor prevents material bridging and ensures smooth flow from bins, especially for moist or fine aggregates. |
|
5.What about power consumption? Efficiency isn’t just about speed for us; it’s also about energy costs per cubic meter.That’s a key metric. The high efficiency here directly reduces energy costs. We use premium-efficiency motors on the mixer and the belts. More importantly, the mixer operates with an optimal filling ratio. Because the mixing cycle is shorter than standard plants, you produce more cubic meters per kilowatt-hour. Customers typically report a 15 to 20 percent reduction in energy consumption per cubic meter compared to their older volumetric or free-fall plants. |
