Practical Quality Cement Block Making Machine QT12-15

MAISON PRODUITS Machine à fabriquer des blocs de béton

Practical Quality Cement Block Making Machine QT12-15

Practical Quality Cement Block Making Machine QT12-15

This equipment uses a combined vibration and pressing process to form concrete from the storage hopper into dense, high-strength blocks. By utilizing standard concrete mix, the QT12-15 can produce a wide range of shapes, including hollow blocks, pavers, and curbstones, through simple mold changes. This flexibility eliminates the need for specialized materials or complex adjustments, making it suitable for diverse construction projects.

  • Modèle :

    Yixin Machinery QT12-15

  • Dimensions de la machine :

    12000*4550*2800

  • Taille de la palette :

    1350*8800（mm）

  • Temps de cycle :

    15-20（S）

  • Force de vibration :

    109（KN）

  • Pression de vapeur :

    21（mpa）

  • Pouvoir :

    60.2（KW）
DEMANDEZ UN DEVIS DÈS MAINTENANT

 Practical Quality Cement Block Making Machine QT12-15

Reference video of QT12-15 cement block making machine

The pallet feeder of the QT12-15 machine automatically sends pallets under the block maker, ensuring seamless material flow. It precisely positions each pallet for consistent molding and high output. Designed for durability, it handles continuous operation with minimal manual help. The feeder reduces downtime and labor costs, improving overall efficiency. Its reliable mechanism works with various pallet types, making it ideal for large-scale production of quality cement blocks.





 Production Data

Block Type Specification（mm） Qty/Palllet Qty/Hour Qty/Hours
Hollow Block 400*200*200 12 2160 17280
Solid Block 240*115*53 70 2160 134400
Holland Block 200*100*60 44 7920 63360
Zigzag Block 225*112.5*60 32 5760 46080



Product Detail

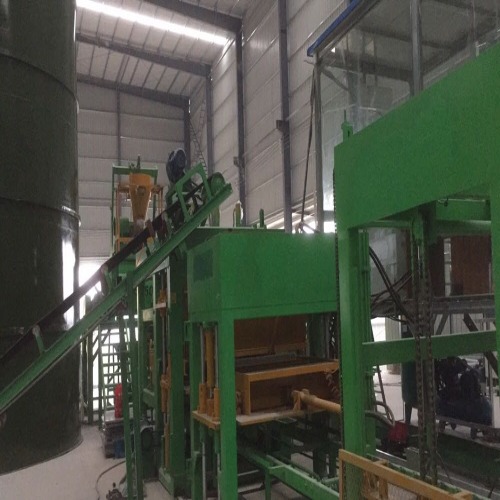

  • Controlling all the equipments’ action and process.
    The block conveyor of the QT12-15 machine automatically transports finished blocks from the production area to the next stage, ensuring a smooth and efficient workflow. It reduces manual handling, prevents block damage, and supports continuous operation. The conveyor is adjustable in speed and compatible with various block sizes.

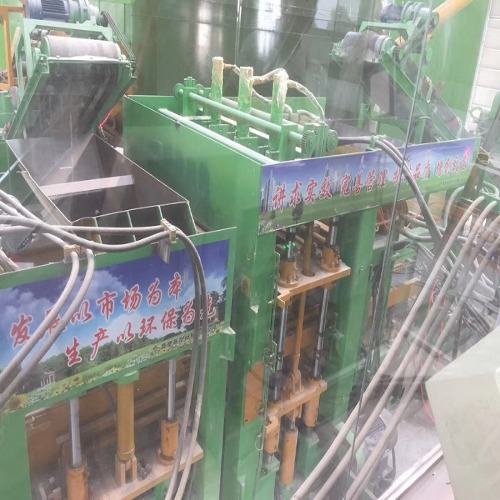

  • Providing hydraulic pressure
    The guiding system of the QT12-15 uses synchronized precision guide shafts and wear-resistant sliding bushings to ensure stable mold alignment. It eliminates lateral movement during high-frequency vibration, maintaining block consistency and dimensional accuracy. The sealed structure prevents dust ingress, reduces maintenance needs, and extends component life.

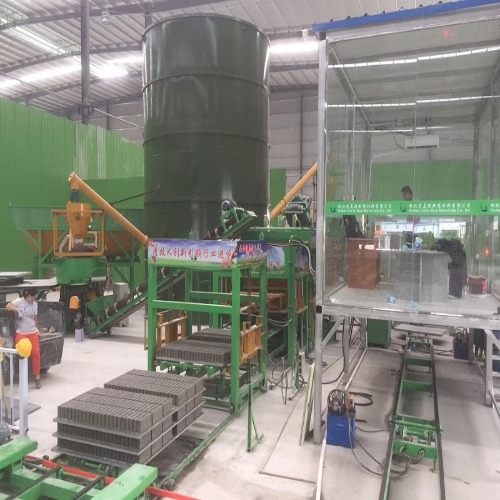

  • Main equipment of making blocks
    The QT12-15 block making machine integrates a high-efficiency blocks stacker that automatically stacks freshly formed blocks directly from the production line. The stacking system handles pallets gently yet precisely, arranging cured or green blocks into stable layers for space-saving storage and transport. It reduces manual labor, speeds up production cycles, and ensures consistent stacking patterns to prevent damage.







Block Display

  • using a robust vibration system for excellent density

  • storage hopper

  • diverse construction projects

  • ensuring a smooth and efficient workflow.


The QT12-15 cement block making machine incorporates an internationally optimized design process and advanced technology to ensure practical, high-quality output. Its robust hydraulic system delivers consistent high-pressure compaction for superior block density and strength. The modular control system allows fully automatic operation, reducing manual intervention while increasing production efficiency.





     Exhibition Experience

  • wear-resistant sliding bushings

  • speeds up production cycles

  •

The QT12-15 features a guide column dynamic demoulding mechanism that ensures parallel and highly accurate mould release. This advanced design eliminates uneven demoulding, reduces product damage, and maintains consistent block quality. The rigid guide columns provide stable vertical movement, while the dynamic system synchronizes pressure across all moulds. As a result, blocks retain sharp edges, smooth surfaces, and precise dimensions.

  •
  •



FAQ

1.How long does the product production cycle typically take?

Practical Quality Cement Block Making Machine QT12-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Practical Quality Cement Block Making Machine QT12-15?

The raw materials utilized in the production process of Practical Quality Cement Block Making Machine QT12-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Practical Quality Cement Block Making Machine QT12-15 after mold confirmation?

The estimated date of shipment for the Practical Quality Cement Block Making Machine QT12-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Practical Quality Cement Block Making Machine QT12-15 be equipped with an additional device to produce various types of colored paving blocks?

  Yes, the Practical Quality Cement Block Making Machine QT12-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
